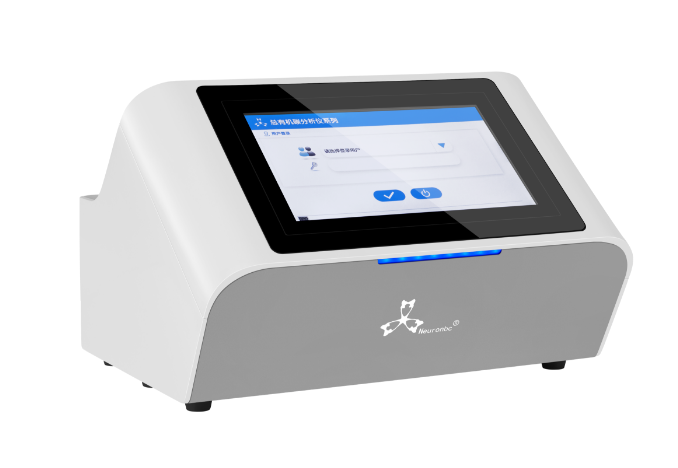

Total Organic Carbon Analyzer TA-10(Off-line)
TA-10 is a high-precision offline total organic carbon analyzer independently developed by NEURONBC. The product adopts ultraviolet oxidation and direct conductivity difference detection technology, featuring high detection accuracy and short response time. The testing methods are satisfied with the requirements of FDA, Chinese Pharmacopoeia and GMP regulations, as well as the requirements of USP and EP,It can meet the offline detection requirements for deionized water such as pharmaceutical water (injection water and purified water), ultra-pure water, etc.
Application Field
It can be used for detecting the concentration of total organic carbon in purified water, injection water and deionized water in the pharmaceutical industry; it can also be used for detecting TOC in ultra-pure water in semiconductor industry, power plants, research institutions, laboratories, etc. It can be applied in the cleaning verification process in the pharmaceutical field and biochemistry field to verify the cleaning effect.
Working Principle
1. Rotating quartz glass tube coated with titanium dioxide
2. Ultraviolet lamp
3. Conductivity sensor
4. Delay coil
5. Peristaltic pump
Performance Parameters
|
Power Supply Requirements/Power Consumption |
100 - 240 VAC, 50Hz, 120W |
|
Measurement Range |
0.001mg/L～1.5 mg/L(1～1500ppb) |
|
Electrical Conductivity Detection Range |
0.055μs/cm～8μs/cm |
|
Measurement Accuracy |
±3% |
|
Resolution |
0.001mg/L |
|
RSD |
Repeatability≤3% |
|
Analysis Time |
Continuous Analysis |
|
Response Time |
Within 5 minutes |
|
Detection Limit |
0.001 mg/L |
|
Sample Temperature |
1-99℃ |
|
Application Scope |
Offline laboratory, cleaning verification |
|
Operating System |
Windows System |
|
Audit Trail |
Multiple event records |
|
Permission management |
Username and password login, 4-level permissions, meeting FDA 21CFR PART 11 requirements |
|
Printing function |
Built-in micro printer |
|
History record |
Unlimited storage capacity |
|
Data backup |
Support for USB drive export of data |
|
Display screen |
12-inch color touch screen |
|
Communication module |
Customizable (4-20)mA, RS485, 12V alarm output |
|
Scheme setting |
Standard configuration |
|
Data backup |
Manual or automatic backup |
|
Screen lock function |
Standard feature |
|
Information alarm |
Standard feature |
Instrument Features
No need for nitrogen, oxygen, acid reagents and oxidants. The operation is simple and the usage cost is low.
2. Offline laboratory use. It can meet the testing requirements of organic carbon in purified water and injection water, as well as the cleaning verification.
3. The instrument completes audit tracking on the lower computer. The verification is simple and it is convenient to query.
4. High intelligence level. Equipped with an automatic sampler. The system adaptability verification can be automatically completed.
5. Limit alarm design. When the test sample exceeds the specified limit, the instrument will automatically alarm.
6. Compliant with the testing schemes stipulated in the new edition of the national pharmacopoeia. It can provide IQ/OQ/PQ verification services.
Equipped with functions such as electronic signature, audit trail, and traceability of original data, it meets the requirements for GMP, Chinese Pharmacopoeia and 21 CFR Part 11 for computerized system validation.
After-sales service commitment:
◆ Exchangeable within three months if quality issues occur;
◆ On-site installation and commissioning training;
◆ Monthly phone follow-ups and regular on-site visits;
◆ 24-hour response and solution provided for any instrument problems;
◆ Backup machine service available during maintenance period.
