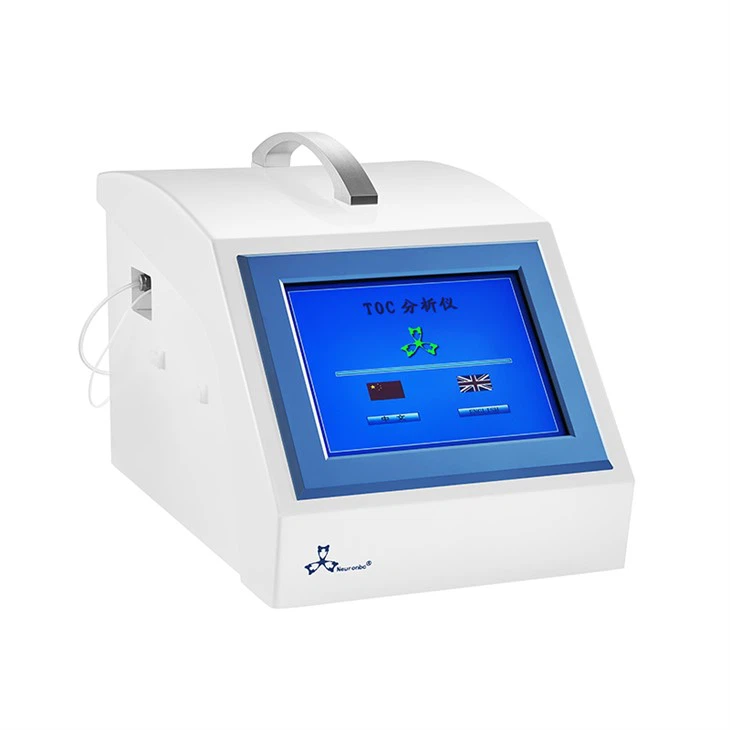

TOC Instrument

Operation Principle
Oxidation organism by UV lamp and convert organic stuff into carbon dioxide, which detection adopted by direct conductivity method. The total organic carbon is the difference of the total carbon (TC)concentration in samples tested after oxidation and not oxidation of the sample total inorganic carbon(TIC), namely: TOC = TC- (TIC).

Illustration:
1---Delay line;
2---Oxidation unit;
3---Inorganic carbon conductivity electrode;
4---Total carbon conductivity electrode;
5--- Ceramic pump

Parameters

Power Supply	100-260VAC 50HZ,120W
Conductivity Detection Range	0.055µs/cm-8.000µs/cm
Measure Range	0.001mg/L ～ 1mg/L(1 ～ 1000ppb)
Accuracy	±3%
RSD	Repeatability ≤ 3%
Resolution	0.001mg/L
Response Time	5mins
Measuring Limit	0.001 mg/L
Sample Temperature	1-99℃
Applied Range	Offline in the Laboratory,Cleaning Validation
Audit trail,Records	≥ 3years storage
Authority Management	User name and password login
Print Function	External Printer
Data Copy	USB disk to export the data
Display Screen	Color Touch Screen
Weight	8.5KG
Dimension(mm)	400240270
Audit trail	customization

Payment term: TT, LC

Delivery date: Negotiable

Packing: export standard

Market: Middle East/ Africa/Asia/South America/Europe/North America

Warranty: 1 year

MOQ: 1 set

Main feature

● Need of nitrogen, oxygen, acid reagent and oxidant, the operation is simple and the cost is low;
● Equipped with automatic sampler, and the system adaptability validation can be done automatically;
● Limit alarm, and when the test sample exceeds the prescribed limit, the instrument makes automatic alarm;
● It is in conformity with the test scheme as specified in the new edition of state pharmacopoeia;

Stablequality: Depending on the needs of the user, Our company has been through professional quality system certification, CE certification,TUV audit, and as a member of the China national resources recycling association. please feel free to purchase.
Low cost: We have a professional team with technical knowledge and managerial experience. Our company has advanced equipments for manufacturing. By virtue of perfect managerial system and excellent quality , so we can always keep the price competitive and reasonable.

Detail：

Can match autosampler using.

Application

Laboratory testing purified water, injection water, and cleaning validation, electronic industry, food industry, etc.

Certificate

Deliver,shipping and Package

Carton in wooden case

After payment 2-4 weeks, by air,ship

After sales service
One year warranty and long-life maintenance, three month change if quality issue.

Best Service: Customer's satisfaction is always Aupu machinery priority concern, we are keen to solve any problem. We will answer all questions asked, help everyone in need and give response to every prayer.

Customized according to needs：We are customized according to customer demand,, to meet customer needs at any time.

Continuous research and development of new products: For the development of international market, our company is to make two breakthroughs, namely network and service.

Best Service: Customer's satisfaction is always machinery priority concern, we are keen to solve any problem. We will answer all questions asked, help everyone in need and give response to every prayer.
