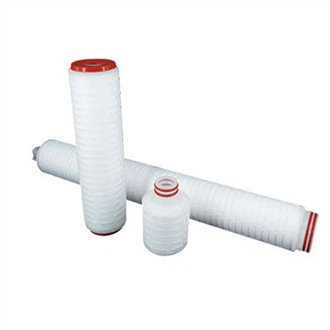

Hydrophobic Polytetrafluoroethylene Cartridge FIlter

Instruction

Cartridge filter media is a hydrophobic PTFE membrane, applicable to pre-filtering of gas and solvent and sterilization. Its hydrophobicity is 3.75 times stronger than the erosion resistance capability of ordinary PVDF; thus, filters are applicable to pre-filtering and precise filtration of gas and solvent sterilization. At present, they are widely applied in pharmacy, food, chemical industry, and electronics, which show excellent heat resistance, they can be repeatedly used in online steam sterilization or high-pressure disinfection. NWF cartridges also have high interception efficiency, high guarantee, and long service life.

Parameters
Filter precision: 0.05, 0.1, 0.2, 0.45, 0.8, 1.0, 3.0, 5.0 (unit: μm)
Effective filter area: single-layered ≥ 0.6 /10"; double-layered: ≥ 0.5 /10"
Cartridge diameter: 69 mm, 83 mm, 130 mm

Quality Assurance
Passing USP biological reactivity test to class VI plastics
Filtrate: <10 mg per 10 inch cartridge (Φ69)
Endotoxin: < 0.25 EU/ml
Endurable to repeated steam sterilization (more than 50 times) in no-load state

Typical Applications
Pre-filtering gases of storage tanks, respirators, and ferment tanks; sterilization
Sterilization of solvents such as esters, alcohols, acids, and alkalis; particle filtering
Sterilization and filtering of compressed air or gases in medicine and food industries.

Material Construction
Filter media: Hydrophobic PTFE
Support/diversion: PP
Plastic skeleton: PP
Seal coil: see the cartridge list
Seal method: melting

Operating Conditions
Maximum working temperature: 90°C, 0.20 Mpa
Sterilization temperature: 121°C; 30 minutes
Maximum positive pressure difference: 0.42 MPa, 25°C
Maximum negative pressure difference: 0.21 MPa, 25°C

Main features

Highly safe sterilization, ensuring 100% filter efficiency in humid environment during gas filter; liquid filter precision specific to 0.2μm; for gas filter, single layer: < Φ0.01μm; double layer: < 0.003μmΦ ;

Strong hydrophobicity, passing water intrusion test, avoiding residues due to the integrity of solvent wetting test ;
Single- or double-layer; large filter area; small pressure difference; large throughput long service life;

Chemical compatibility; endurable to acid, alkali, and organic solvent;

Cartridge independently numbered; production batch traceable;

Passing 100% integrity test; quality safe and reliable.

Ordering Information
NWF--□--◎--◇--○--☆--△

□		◎		☆		△
No.	Filter precision (μm)	No.	Size	No.	Connector	No.	Seal coil material
005	0.05	H	Single layer	A	215 / plain	S	Silicone rubber
010	0.10	S	Double layer	B	Both ends plain / both ends passing	E	EPDM
020	0.20	○		F	Both ends plain / one end sealed	B	NBR
045	0.45	No.	Size	H	Inner O shaped coil / plain tail	V	Fluorine rubber
085	0.8	5	5"	J	222 stainless steel liner / plain tail	F	Wrapped fluorine rubber
100	1.0	1	10"	K	222 stainless steel liner / fin
300	3.0	2	20"	M	222 / plain tail	◇
500	5.0	3	30"	P	222 / fin	No.	Class
		4	40"	Q	226 / fin	P	Pharmacy
				O	226 / plain tail	E	Electronics
				R	226 stainless steel liner / fin	G	Food and pharmacy
				W
