China TOC WFI

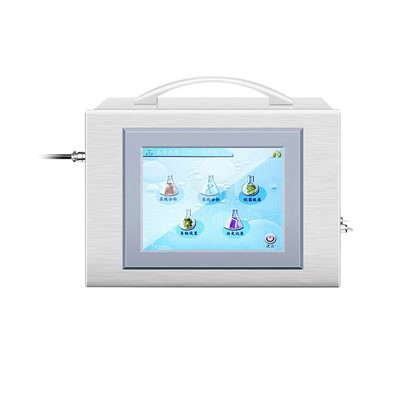

China TOC WFI analyzer adopts 304 stainless steel design,greatly improving the equipment adaptability in different environments. It can meet the choice of two different schemes for the single point of real-time monitoring or multiple point time-division monitoring, meeting the requirements of national laws and regulations.(Video are 17 units for European delivery)

Operation Principle
Oxidation organism by UV lamp and convert organic stuff into carbon dioxide, which detection adopted by direct conductivity method. The total organic carbon is the difference of the total carbon (TC)concentration in samples tested after oxidation and not oxidation of the sample total inorganic carbon(TIC), namely: TOC = TC- (TIC).

Illustration:
1---Delay line;
2---Oxidation unit;
3---Inorganic carbon conductivity electrode;
4---Total carbon conductivity electrode;
5--- Ceramic pump

China TOC WFI
Parameters

Power Supply	100-260VAC 50HZ,120W
Conductivity Detection Range	0.055µs/cm-8.000µs/cm
Measure Range	0.001mg/L ～ 1mg/L(1 ～ 1000ppb)
Accuracy	±3%
RSD	Repeatability ≤ 3%
Resolution	0.001mg/L
Measuring Limit	0.001 mg/L
Sample Temperature	1-95℃
Applied Range	Online
Audit trail,Records	≥ 3years storage
Print Function	External Printer
Data Copy	USB disk to export the data
Display Screen	Color Touch Screen
Weight	8.5KG
Dimension(mm)	300210250

Main feature

● Carry out data upload and communication with different water systems and control systems, with a real-time display;
● It provides customers with two options, for both the single point real time and multiple point time-division online monitoring;
● It has the waterproof, which can work in high humidity and temperatur environment;

Detail:
