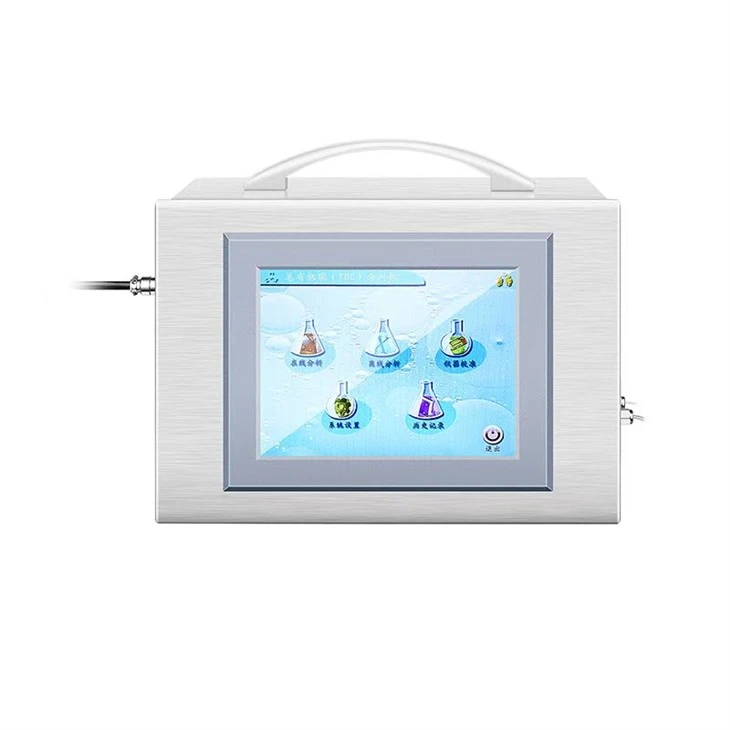

TOC Analyzer Online Continue Water Monitor System

Working principle

TOC analyzer online continue water monitor system use the principle of ultraviolet catalytic oxidation, to oxidize the organic matter in the sample into carbon dioxide, where the test of carbon dioxide test uses the direct conductivity method, to determine the total organic carbon content through the test of the difference between the total carbon content in the sample after oxidation reaction and the total inorganic carbon content in the sample without oxidation, i.e., the total organic carbon (TOC) = total carbon (TC) - total inorganic carbon (TIC).

1.The rotating quartz glass tube coated with titanium dioxide; 2. UV lamp; 3. Conductivity sensor; 4. Delay coil; 5. Peristaltic pump

Parameters:

Power Supply	100 – 260 VAC, 50HZ, 120W
Conductivity Detection Range	0.055us/cm-8.000us/cm
Measure Range	0.001mg/L～1.0 mg/L(1～1000ppb)
Accuracy	±3%
Resolution	0.001mg/L
Analyzing Time	Continues Analyzing
Response Time	5mins
Measuring Limit	0.001 mg/L
Sample Temperature	1-99℃
Applied Range	Online/Offline in the Laboratory
Authority Management	User name and password login ,to meet FDA 21CFR PART 11 requirements
Print Function	External Printer
Historical Records	More then 5000 sets
Audit trail	customized
Audit trail records	≥3years
Display Screen	Color Touch Screen
Weight	8.5KG
Dimension(mm)	400240270

Features

◆ No need of nitrogen, oxygen, acid reagent and oxidant, simple operation and the lower cost;

◆ Can be used in off-line laboratory, to meet the test and cleaning validation for organic carbon injection water and purified water;

◆ Equipped with automatic sampler, and the system suitability validation can be done automatically;

◆ Automatic lock screen in time 0-60mins;

◆ Users quantity can add to 100 ;

◆ If the user's password is entered incorrectly for 5 times, the system will automatically freeze the user. After freezing, the system level user can change the password to unlock. When changing the password, it is necessary to change the locking state to the active state.

◆ Add user running valid date is 1-999 days

◆ When the user state is locked, the system level user can be unlocked, but the password is changed at the same time, the original password can not be used

◆ When connecting automatic sampler test or single machine offline test, it is necessary to enter the sample name, and you can enter numbers, letters, symbols, 0 ~ 16 digits.

Detail :
