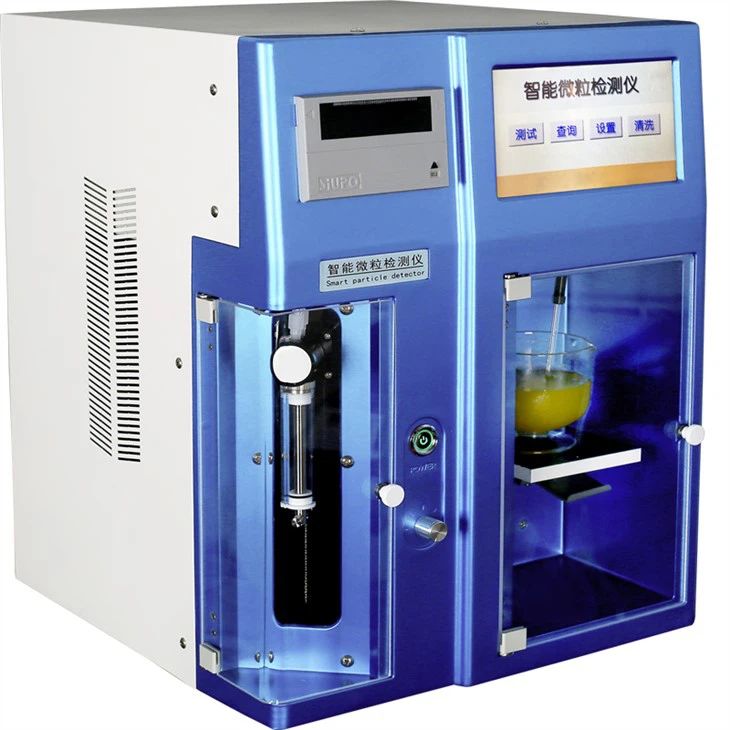

Insoluble Particle Counter

Insoluble particles in liquid medicine refer to the foreign matters that can flow and exist randomly in liquid preparations except bubbles, including the solution prepared by sterile solid preparations. Its particle size is between 1-50 μ m, invisible to the naked eye, and it is easy to move. The existence of insoluble particles is directly related to the quality of drugs and endangers human health. The pathogenetic mechanism is that insoluble particles can not be metabolized in human body, which is easy to induce thrombosis and lead to disease deterioration and new diseases. Therefore, the Pharmacopoeia of various countries have very clear limits on insoluble particles. NBC-28s particle detector can fully meet the design scheme of Chinese Pharmacopoeia (2020 Edition) and the requirements of Pharmacopoeia of the United States, the United Kingdom, Japan and the European Community for the detection of insoluble particles in small volume injections. It can also be used for the detection of particles in large infusion and infusion equipment, the filtration effect of infusion terminal filter and other fields (such as petroleum, chemical industry, dye, food, etc.) of liquid particles testing.

Product Introduction

Main technical indicators
1. Test range: 1-500 μ M
2. Channel setting: ≥ 2 μ m, ≥ 5 μ m, ≥ 8 μ m, ≥ 10 μ m, ≥ 12 μ m, ≥ 20 μ m ≥ 25 μ m, ≥ 100 μ M , eight channels
3. Injection volume: 5ml ± 1%; 0.2-999.9ml arbitrary sampling
4. Count range: 0 ～ 99999 particles
5. Relative standard deviation: RSD ≤ 2% (standard particle ≥ 1500 / ml)
6. Accuracy: specified value ± 10%
7. Channel resolution: ≥ 68% (Chinese Pharmacopoeia 2015)
8. Working temperature: 10 ～ 35 ℃
9. Power supply: AC220V ± 10%; 50Hz; ≤ 60W
10. Weight: 20kg
11. Volume: 360 * 330 * 410 (mm)

Reversing valve
LCD touch screen
The stirring rod
Power switch
Sampling cup
Mixing switch
Sampling table
High pressure syringe
Dust door of injection pump

Front panel of the instrument
1. Power switch (main power supply of the instrument)
2. Mixing switch (to control the start, stop and rotation speed of mixing)
3. LCD touch screen
4. Dust door of high pressure syringe
5. High pressure sampler (10ml imported sampler as standard)
6. Reversing valve (inlet and outlet liquid conversion, acid and alkali resistance, corrosion resistance)
7. Pipeline (one liquid inlet and one liquid discharge)
8. Liquid inlet and outlet device
9. Sampling table
10. Sampling cup
11. Sampling needle
12. Mixing rod
13. Sampling dust door

Left side of the instrument:
Micro embedded printer

Back side of the instrument:
1. Fuse pipe (1A)
2. Power socket (connected to power cord)
3. Drain interface (connected with drain pipe)
4. Instrument nameplate (indicating the production date and number of the instrument)
