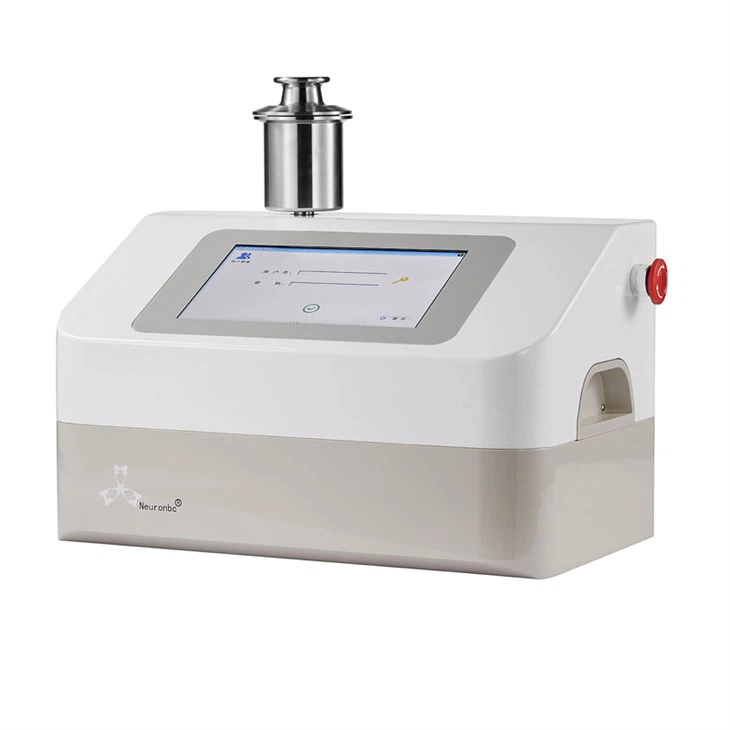

Packaging tightness tester
NeuronBC have many years of experience in non-destructive leak testing. All of instrument are designed for sterile medical device packaging and pharmaceuticals and also available for purchase locally and globally.
CCIT work on vacuum decay principle. They are preferred for testing pharmaceutical and medical products as well as a range of food products including cans and bottle caps, among others.
Parameters:
|
Differential pressure sensor |
±2kpa, error≤0.5%F.S. |
|
Differential pressure resolution |
0.1pa |
|
Test pressure sensor |
Error≤±1%F.S. |
|
Test pressure range |
-0.1～0.2MPa/-0.1～0.7MPa/-0.1～1.0MPa(optional) |
|
Minimum detectable aperture |
2μm( for IV bag minimum 5μm) |
|
Display method |
10-inch touch color touch screen |
|
Voltage |
AC100V-240V, 50/60Hz, power ≤200W |
|
Audit trail |
≥5 years of storage Multiple event logs, which can be queried according to time |
|
Authority management |
Login with username and password, level 4 authority |
|
Data backup |
Support U disk to export data |
|
Signal output |
(4-20) mA, RS485, 12V alarm output(customade) |
| Dimension | 311*480*280（heighth1）*190（heighth2） |
| Weight | 19kg |
Main Features:
● Comply with USP <1207>, ASTM F2338 standards and FDA standards.
● Semi-automatic detection, suitable for small batch and multi-variety testing.
● Non-destructive testing, high accuracy, repeatability, sensitivity.
● The instrument is used for vacuum pressure difference detection.
● The leak rate can be automatically converted into defect aperture μm.
● Database storage of test results for easy quality management.
● Touch-type man-machine interface, simple and quick operation: after setting/selecting the test program, only need to manually put in/take out the test sample.
Advantage function:
● Automatically test the flow rate and change the aperture size during the whole process.
● Automatic leak rate calibration function.
● Equipped with standard leaks (standard positive bottles, with third-party certification).
● Four-level user authority management meets FDA 21CFR PART 11 requirements.
● Split design, the test chamber is located above the host, and various test chambers can be provided according to different product types.
● We also provide users with supporting services including positive bottle production, standard leak rate/annual leak verification, new sample mold customization, etc.
● The test cavity is customized according to customer needs to ensure that the test cavity is fully matched with the customer's product, and rapid and sensitive testing.
Application:
Certificate
Deliver,shipping and Package
Wooden case carton inside
After payment 2-4weeks, by air,ship
Aftersale service
Three month replacement for free,one year warranty and long-life maintenance.
